We specialize in manufacturing various types of residential container houses, offering customizable dimensions, door/window layouts, insulation materials, and interior fittings.
Zhuoyu

20ft Grey Metal Carved Panel Expandable Container House with Glass Curtain Wall for Living

20FT Expandable Container house
$6688.00
MOQ: 1 pieces | Lead Time: 7-15 Days

This 20ft grey dual wing expandable container house is a prefabricated modular home built with metal carved panel cladding and elegant glass curtain wall. It adopts heavy-duty steel frame structure. When unfolded, this expandable container house delivers spacious living space, with pre-installed full bathroom including shower, toilet and sink. The grey exterior looks modern, easy to transport and fast to set up. Great choice for temporary residence, holiday cabins and site accommodation.

Product Inquiry

Fee Description

  • Price is negotiable for wholesale bulk orders. The listed price is for reference only.
  • Shipping cost is NOT included in the product price. No free shipping service provided.
  • Final price and shipping cost will be quoted individually according to your order quantity, product specs and delivery address.
  • Please inquire for a formal quotation before making payment.

Technical Specifications

Detailed technical parameters of Container House

Brand
Zhuoyu
Product Name
20ft Grey Dual Wing Expandable Container House with Glass Curtain Wall
Base Size
20ft container size (folded state for transportation)
Outer Wall Material
Grey metal carved panel + tempered glass curtain wall
Main Frame
Galvanized welded steel frame with anti-rust coating
Interior Wall
Decorative integrated wall panel
Floor
Anti-slip wear-resistant floor
Window & Door
Aluminum alloy windows, double glass entrance door
Supporting Facility
Pre-installed full bathroom (shower, toilet, wash basin)
Electrical System
Pre-wired circuit, LED lights, sockets and switches
Feature
Dual wing expandable design, fast assembly, movable, waterproof and heat insulation
SizeExpanded DimensionInternal DimensionFolded DimensionFloor AreaWeight
10 ftL2950*W6200*H2480L2690*W6040*H2240L2950*W2200*H248018 m21.6 ton
20 ftL5900*W6200*H2480L5460*W6040*H2240L5900*W2200*H248037 m22.8 ton
20 ft 700widthL5900*W4700*H2480L5640*W4540*H2240L5900*W700*H248027 m21.95 ton
30 ftL9000*W6200*H2480L8740*W6040*H2240L9000*W2200*H248054 m23.75 ton
40 ftL11800*W6200*H2480L11540*W6040*H2200L11800*W2200*H248073 m24.6 ton


Optional Accessories for Double-Wing Expandable Prefab House

The main body is standard double-wing foldable prefab house. All items below are optional, can be quoted separately for customer selection

1. Door & Window System Options

  1. Door & window materials: Broken bridge aluminum windows / UPVC windows, aluminum alloy swing doors, security doors, glass sliding doors

  2. Glass: Single tempered glass / Double insulated tempered glass (heat insulation & soundproof), Low-E glass

  3. Accessories: Insect screens, security grilles, external sunshade blinds, external rolling shutters, porch canopy, escape window

  4. Locks: Standard lock, fingerprint password lock, split anti-theft lock

2. Interior & Exterior Cladding and Insulation Options

Exterior Wall

Color steel panel, metal carved panel, PVC siding, PVDF coated wall panel, cement fiber board

Interior Wall

Standard PVC wall panel, bamboo-wood fiber panel, fire-resistant magnesium oxide board, gypsum board with latex paint

Insulation Layer (Core optional item for export)

EPS, Rock wool (Class A fireproof), PU foam; available thickness: 50/75/100mm

Floor

Cement fiber base board + PVC vinyl flooring, engineered wood flooring, anti-slip checkered steel plate, ceramic tile; floor waterproof coating

3. Water, Drainage & Electrical Options (High-frequency export options)

  1. Power distribution: GB / EU standard sockets, distribution box, residual current circuit breaker, LED lighting, emergency lights

  2. Wiring: Concealed wiring (pre-embedded inside wall) / Exposed wiring; upgraded flame-retardant fire-resistant cables

  3. Water supply & drainage: PPR cold & hot water pipes, sewage pipes, floor drain, wash basin, toilet (seat / squat), shower set

  4. Full PV & energy storage package (key product line): Monocrystalline solar panels, LiFePO4 battery, pure sine wave off-grid inverter, controller, solar bracket

4. HVAC Options

Wall-mounted air conditioner, cooling & heating integrated unit; electric heater, underfloor heating module; fresh air system, exhaust fan, ventilation fan

5. Bathroom Module Options (Pre-installed independent bathroom kit)

Integrated shower room, waterproof base tray, bathroom cabinet, mirror, water heater (electric / air source), waterproof threshold

6. Structural & Safety Options (Exclusive for double-wing foldable house)

  1. Upgraded reinforced folding hinges, heavy-duty latches, external support braces (load bearing after expansion)

  2. Roof upgrade: PVDF waterproof membrane, asphalt waterproof roll, metal roofing, roof gutter & downpipes

  3. Anti-corrosion upgrade: Hot-dip galvanized components, PVDF spray coating; chassis anti-corrosion & anti-rust coating

  4. Lightning protection earthing kit, seismic reinforcement fittings

7. External Expansion & Supporting Facilities

  1. Outdoor platform / Accessibility ramp, external steel staircase, handrail

  2. External storage cabin, retractable awning, terrace guardrail

  3. Reinforced lifting lugs, manual / hydraulic adjustable leveling legs

8. Smart System Options (For high-end clients, camps & homestay projects)

Whole house smart system: door & window sensors, motion sensor lights, smoke detector, gas detector, WIFI gateway, reserved interface for surveillance camera

9. Certification & Packing Options

Sea freight reinforcement package, protective film, shipping marking, technical drawing documents


Frequently Asked Questions

Please carefully review the Q&A, which may be of great help to you!

Q: What material is the outer wall of this 20ft grey dual wing expandable container house?
A: The exterior wall uses grey metal carved panel, matched with large glass curtain wall. The metal carved panel is anti-corrosion, waterproof and heat-insulated, glass curtain wall improves daylighting and modern appearance of this 20ft grey dual wing expandable container house.
Q: How long does it take to install this expandable container house?
A: This 20ft grey dual wing expandable container house is prefabricated in factory. It only needs simple unfolding and connection work on site. Normally 2-4 workers can finish setup within several hours, no complex foundation or heavy construction required.
Q: Does this container house come with a bathroom?
A: Yes. This 20ft grey dual wing expandable container house is equipped with a complete pre-finished bathroom, including shower system, ceramic toilet, hand washing basin, water pipes and lighting. All bathroom fixtures are pre-installed before delivery.
Q: What size is this dual wing expandable container house?
A: It is 20ft base size for transport. After expanding both wings, the usable living area will be greatly increased. The glass curtain wall design runs on the front side to bring wide vision for the room.
Q: Can this expandable container house be transported by truck?
A: Absolutely. When folded, the 20ft grey dual wing expandable container house keeps standard container dimension. It can be loaded onto truck or shipped by sea container for cross-region delivery.
Q: Is the steel frame rust resistant?
A: The main steel frame is treated with anti-rust coating. Combined with waterproof grey metal carved panel, the whole structure can resist rain and moisture for long-term outdoor use of this expandable container house.
Q: Can I customize the interior layout?
A: Yes, we support custom interior design for this 20ft grey dual wing expandable container house. You can adjust room partition, change window positions, upgrade electrical system or modify bathroom configuration as your request.
Q: What climate can this container house adapt to?
A: This expandable container house with metal carved panel has good thermal insulation. It works well in most temperate and subtropical regions. We can add extra insulation layers for cold or high-temperature areas.
Q: Does it include electric wiring and lights?
A: Yes, factory pre-installed complete electrical circuit, LED ceiling lights, sockets and switches. After connecting external power source, this 20ft grey dual wing expandable container house can be used directly.
Q: What is the service life of this prefab container house?
A: With regular maintenance, the steel structure of this expandable container house can serve more than 15 years. Metal carved panel also keeps stable performance under long time outdoor exposure.
Q: What is the lead time for your prefab container house?
A: Our normal production lead time for standard prefab container houses is 7-15 working days. Customized models will take longer based on your design requirements.
Q: Can you provide installation guidance for the modular container building?
A: Yes, we supply detailed installation manuals, drawings and video tutorials. Our technical team also offers online technical support during assembly.
Q: What payment terms do you accept for exporting container homes?
A: We support common international payment methods such as T/T, L/C, and Western Union. Specific terms can be negotiated according to your order value.

Featured Products

Our best-selling Container House products with premium quality and competitive pricing

HOT
Product Name: 20ft 3D Wood Grain Dual Wing Expandable Container House Folded Transport Size: Standar

Product Name: 20ft 3D Wood Grain Dual Wing Expandable Container House Folded Transport Size: Standar

$6688.00

MOQ: 1 Pcs

HOT

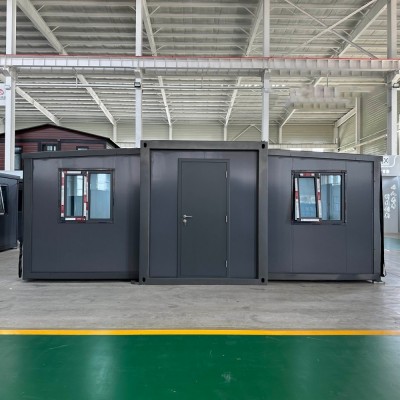

Grey 20ft Dual Wing Expandable Container House 4 Rooms with Full Bathroom

Grey 20ft Dual Wing Expandable Container House 4 Rooms with Full Bathroom

$6688.00

MOQ: 1 Pcs

HOT

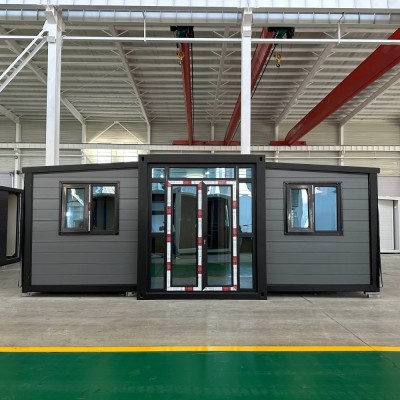

Grey Metal Carved Panel 20ft Expandable Container House Double Wing Mobile Prefab Home
